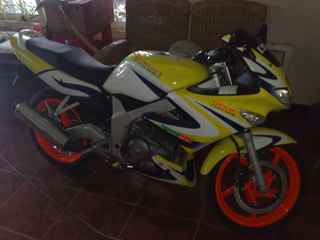

SPECIFICATIONS Suzuki FXR 150



SPECIFICATIONS  Suzuki FXR 150

Engine and transmission
Displacement : 147.00 ccm (8.97 cubic inches)
Engine type : Single cylinder
Stroke : 4
Power : 20.11 HP (14.7 kW)) @ 13000 RPM
Max RPM : 15000
Compression : 10.7:1
Bore x stroke : 62.0 x 48.8 mm (2.4 x 1.9 inches)
Fuel system : Carburettor. Mikuni BS29SS
Valves per cylinder : 4
Fuel control : DOHC
Ignition : CDI, 9 degree BTDC at 1500rpm
Starter : Electric & kick
Lubrication system : Wet sump
Cooling system : Oil & air
Gearbox : 6-speed

Transmission type
final drive : Chain
Clutch : Wet multi-plate type

Physical measures
Dry weight : 118.0 kg (260.1 pounds)
Seat height : 760 mm (29.9 inches) If adjustable, lowest setting.
Overall height : 1,080 mm (42.5 inches)
Overall length : 1,985 mm (78.1 inches)
Overall width : 665 mm (26.2 inches)
Wheelbase : 1,325 mm (52.2 inches)

Chassis and dimensions
Rake (fork angle) : 24.0°
Trail : 85 mm (3.3 inches)
Front suspension : telescopic, coil spring, oil damped forks
Rear suspension : swinging arm, coil spring, oil damped, spring pre-load 4-way adjustable
Front tyre dimensions : 80/90-17
Rear tyre dimensions : 100/90-17
Front brakes : Single disc
Rear brakes : Single disc

Speed and acceleration
Top speed : 150.0 km/h (93.2 mph)
Power/weight ratio : 0.1704 HP/kg

Other specifications
Fuel capacity : 15.00 litres (3.96 gallons)
Reserve fuel capacity : 3.40 litres (0.90 gallons)
Fuel consumption pr. 100 km (6.2 miles): 3.00 litres (0.79 gallons)
